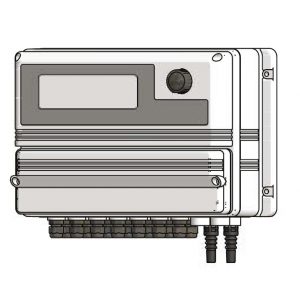

MAX5 – Monitor multiparametric

Control parametri chimiciMAX5 este un instrument digital multiparametric de control cu pana la 5 canale programabile pentru urmarirea parametrilor de calitate a apei: pH, ORP, clor (total, liber si combinat), turbiditate, temperatura (probele nu sunt incluse).
Outputs/Inputs available:
– 6 setpoints outputs (on/off, PID or PWM),
– 6 proportional outputs,
– 6 mA (optional*) outputs,
– 1 probe cleaning output,
– 5 tank level inputs,
– 5 timer for flocculant/algicide dosing,
– water meter input for water restore,
– alarm output,
– self- installing communication software.
All information are provided through a widescreen LCD display (240×64).
Using a revolutionary wheel control the instrument can be easily programmed.
MAX5 with 6 mA outputs:
Local network:
MAX5 RS485 + USB version

Remote control by GSM/GPRS internal modem:
MAX5 GSM/GPRS + RS485 + USB version

Remote control by Ethernet
MAX5 internal Ethernet WebServer + RS485 + USB version

DATA log OPTION
This option allows the data log download on a USB device.

Attention: for a best result, use PEF22 on page 58.

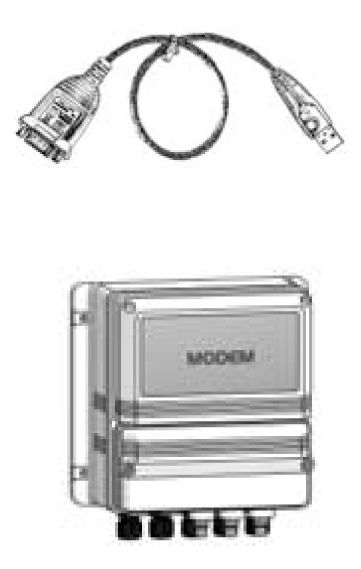

Dispozitive de comunicare pentru MAX5


  • USB –
    Adaptor interfata
  • MODEM CU ANTENA
    Modem extern pentru LCOMM5. Lungime cablu – 3 m.
  • LCOMM 5
    Modem pentru MAX5. Foloseste protocolul standard GSM/GPRS (telefon mobil). Cabluri si sursa de alimentare incluse. Cutie IP65.
“MAX5” is a multi-parameter digital instrument to control up to 5 porgrammable channels for regulation
of: pH – ORP – Chlorine (total, free and combined) – Turbidity – Temperature (probes not inlcuded).
Outputs/Inputs available:
– 6 setpoints outputs (on/off, PID or PWM),
– 6 proportional outputs,
– 6 mA (optional*) outputs,
– 1 probe cleaning output,
– 5 tank level inputs,
– 5 timer for flocculant/algicide dosing,
– water meter input for water restore,
– alarm output,
– self- installing communication software.
All information are provided through a widescreen LCD display (240×64).
Using a revolutionary wheel control the instrument can be easily programmed.
* Extraprice for MAX5 with 6 mA outputs: + e 156.00.
Local network:
MAX5 RS485 + USB version
€ 1.674,00
Remote control by GSM/GPRS internal modem:
MAX5 GSM/GPRS + RS485 + USB version
€ 1.954,00
Remote control by Ethernet
MAX5 internal Ethernet WebServer + RS485 + USB version
€ 1.854,00
DATA log OPTION
This option allows the data log download on a USB device.
Extraprice: + € 100,00
Attention: for a best result, use PEF22 on page 58.
